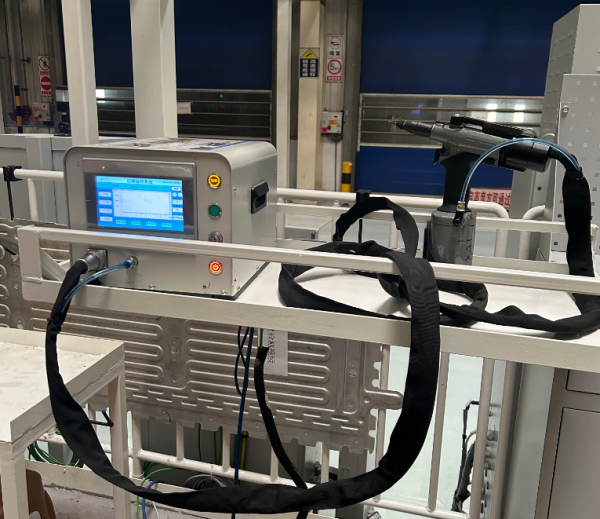

Manual monitoring of the rivet and screw system
Manual Monitoring Riveting System—An expert in real-time riveting quality monitoring, integrating tension/travel monitoring, data storage, and intelligent alarms to provide full-process quality assurance for the riveting process.
Core features
Real-time monitoring: Real-time monitoring of the quality after riveting of rivets and nut rivets, generating stress deformation curves to ensure the quality of every rivet part.
Intelligent management: Equipped with counting and data storage functions, supporting TCP/IP and PROFINET protocols, data can be uploaded to MES systems or client terminals.
Dual Alert: Dual alarms with sound + vision accurately identify whether riveting is qualified, preventing defective products from entering the next production line.

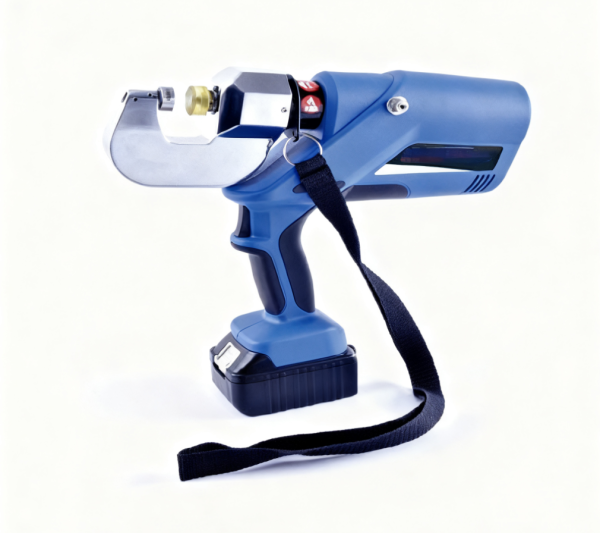

SPR Self-inplunge riveting system
Product positioning
SPR self-drilling riveting system—innovative locking technology enables permanent plastic connections of different materials, covering multiple forms such as handheld electric and suspended manual systems, suitable for all scenarios such as automotive trial production, rework, and mass production.
Technical principles
Under external force, the locking rivet pierces through the first and middle layers of material, flowing and extending within the underlying material to form a mutually embedded permanent plastic deformation connection (i.e., locking rivet SPR connection). The process includes six major steps: positioning, clamping, pressing, piercing, deformation, and forming.

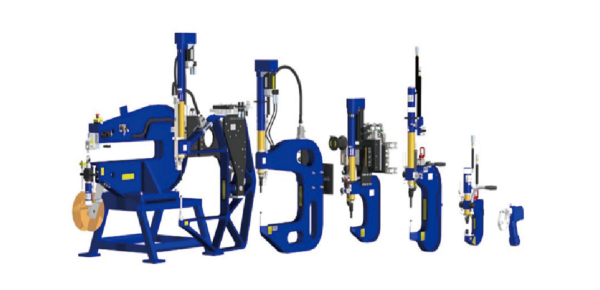

Suspended manual system
Suspended manual system
Equipment type: Balanced crane equipped with handheld rivet guns, suitable for various rivet production.
Core Configuration:
Staple delivery method: Automatic staple feeding / manual staple placement (same KVD brand as Borhauf, lifetime warranty).
Operating parameters: Balance crane rotation radius 3500mm; C-type clamp throat depth ≥150mm (throat depth 300mm), opening size ≥50mm (50mm); Riveted gun tip diameter< 25mm (18mm); Equipment pressure≥5t.
Compatible materials: Riveted sheet range 1+1~3+3 (numbers indicate sheet thickness); The riveting materials are Series 6 aluminum alloy and Series 5 aluminum alloy; The rivet surface must have a coating (salt spray test≥ 96h corrosion-free, punch needle free and perpendicular to the workpiece).

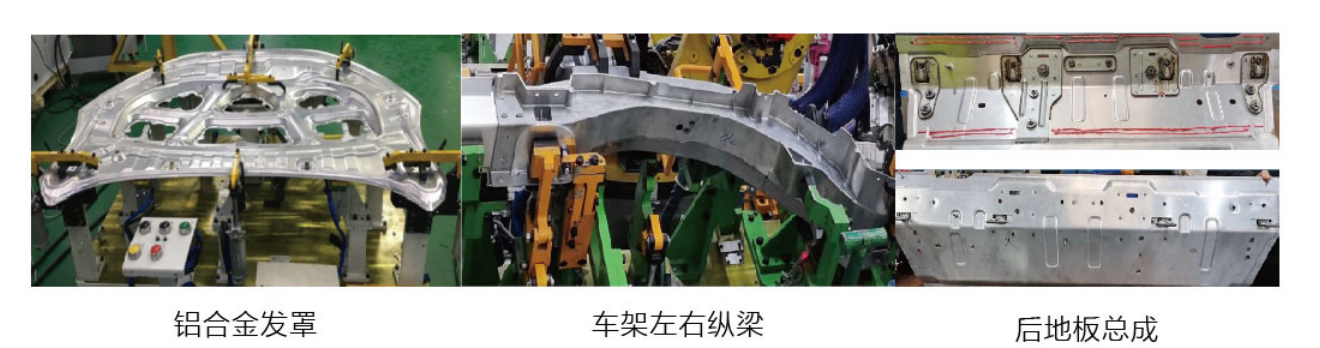

Main application areas of white body SPR
