Laser marking products
REHQI laser marking machine is a new generation laser marking system developed by our company using the world's advanced laser technology. It uses fiber or pulsed lasers to output laser beams, and then achieves marking functions through a high-speed scanning galvanometer system. The laser marking machine has a high electro-optical conversion efficiency, reaching over 30%, uses air cooling, has a compact overall size, good output beam quality, and high reliability.
Features:
High speed: The marking speed is increased by approximately 5 times
Low operating cost: No ink or engraving needles are used
Low maintenance: The primary daily maintenance of the laser marking machine involves only the lens

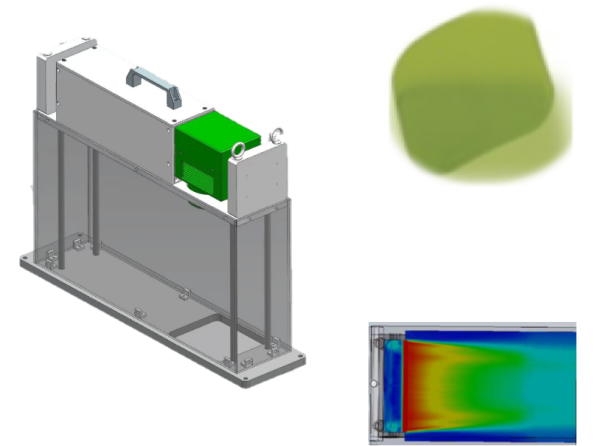

VN code customized laser marking head
Equipped with a laser protective screen OD6 1080nm, used to block laser radiation and protect personnel and equipment safety.
An efficient air knife is crucial for lens protection, as it can effectively extend the service life of the protective window, as well as disperse metal dust, reducing the shielding effect of metal dust on the laser. There are two key aspects in the design of the air knife: outlet flow speed and velocity uniformity. The efficient air knife fully considers these two factors in the flow field design, effectively improving the efficiency of the air knife.

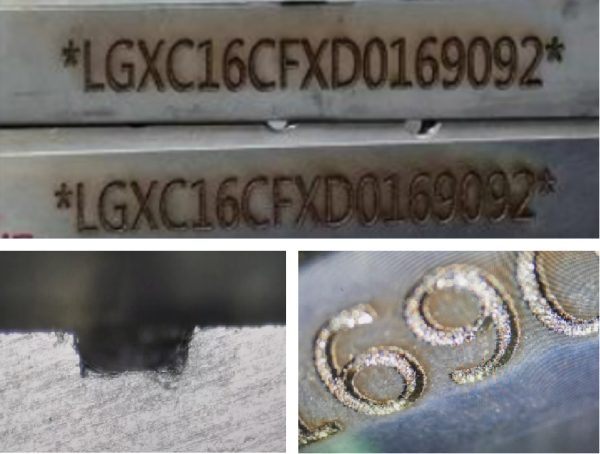

VN Code Laser Marking Product Solution
Recommended Parameters
Marking Speed: 3000mm/s
Power: 160W
Pulse Width: 350ns
Frequency: 130kHz
Fill: 0.03 Bow-shaped Cross
It is recommended to confirm specific parameters after sample marking
Depth Test: 0.3mm
Processing effect of the new scheme: no slag residue on the material surface
Laser Marking System Application Case
