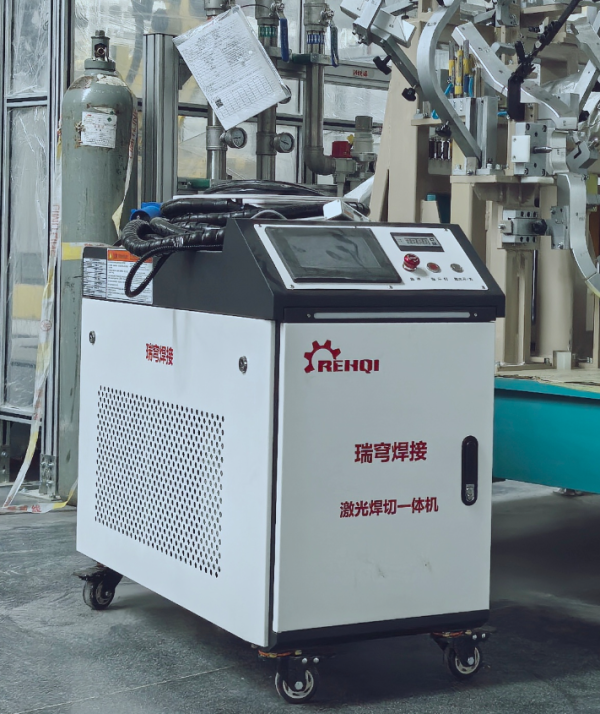

Laser Welding and Cutting Integrated Machine - Product Configuration

No.	Name	Unit	Quantity	Remarks
1	Laser	Set	1	Fiber continuous laser
2	Handheld Gun Head	Set	1	Lightweight and safe
3	Laser Cooling Unit	Set	1	Professional laser cooling
4	Control System	Set	1	Touchscreen control
5	Wire Feeder	Set	1	Suitable for various diameters of welding wire
6	Light Guide System	Set	1	10-meter fiber transmission
7	Accessories	Set	1	Nozzles, protective lenses

Manual Laser Welding and Cutting Integrated Machine - Product Advantages

1. Wide Application: Suitable for automobiles, new energy batteries, high-speed trains, commercial vehicles, and other fields. Can weld carbon steel, stainless steel, aluminum, and various other metals. Supports welding and cutting, compatible with manual, automated special machines, and robot operations.

2. Excellent Performance: High weld seam quality, strong strength, minimal deformation, fast welding speed (efficiency compared to argon arc welding is 1:5). Laser electro-optical conversion efficiency exceeds 33%, with a lifespan over 100,000 hours.

3. Easy Operation: Touchscreen control is user-friendly and does not require professional personnel; the handheld torch weighs only 1.36KG, and with a 10-meter fiber, long-distance and outdoor operations are possible, saving labor costs.

4. Safe and Reliable: Equipped with multiple safety alarms, automatically locks the laser when the workpiece is removed; comes with a protective mask compliant with ANSI Z136 standards, reminding users to wear professional protective equipment.

5. Controllable Costs: Low consumables, standardized and easy-to-maintain components such as wire feeders; filler wire can bridge workpiece gaps (up to 1mm), reducing subsequent processing costs.

Handheld Laser Gun - with Automatic Wire Feeding

Ingenious internal design with a good interactive control system, expanding the tolerance range of machined parts and the weld width, solving the disadvantage of small spot size, resulting in better weld formation. Weighs less than 1.5KG, lightweight design, comfortable grip, simple and easy to operate. Equipped with multiple safety alarms, automatically locks the light when the workpiece is removed, ensuring high safety. Can be configured with nozzles at various angles to meet different product welding needs.

Filler wire compensates for large gaps between workpieces and concave welds: 1. Maximum gap allowed is 1mm; 2. Filler wire diameters: 0.8, 1.0, 1.2, 1.6 mm; 3. Filler wire speed: adjustable from 0 to 9 meters/min; 4. Equipped with wire retraction function.

Handheld Laser Gun - With Automatic Wire Feeding 1

Handheld Laser Gun - With Automatic Wire Feeding 2

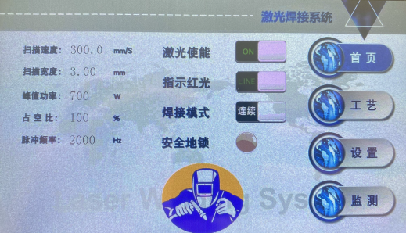

Handheld laser gun - with automatic wire feeding - display panel

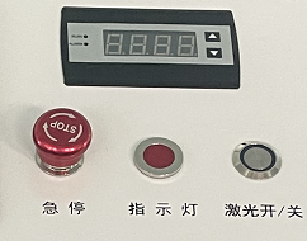

Handheld laser gun - with automatic wire feeding - switch button

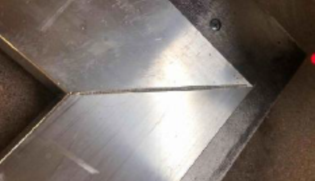

Laser Welding and Cutting All-in-One Machine - Efficient Application in Various Industries

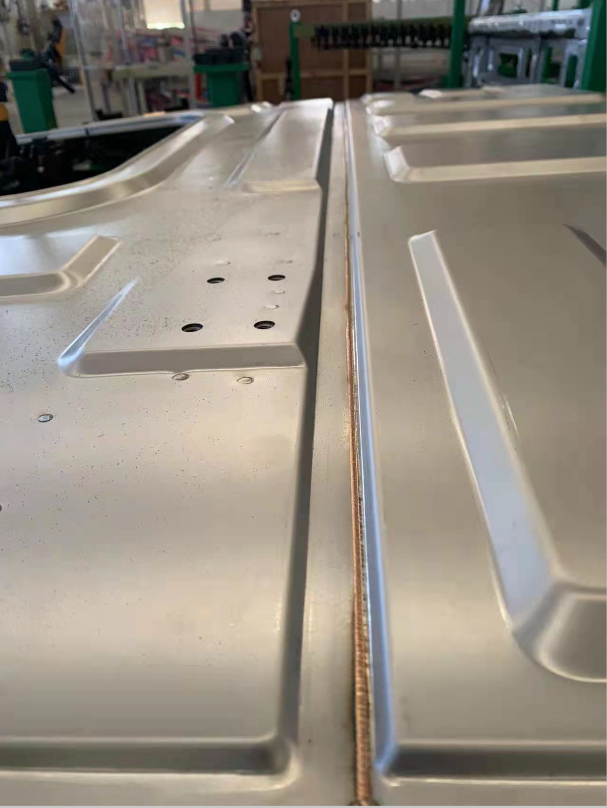

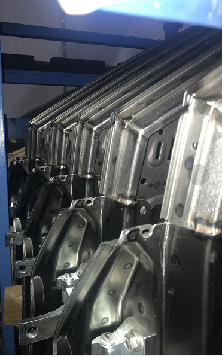

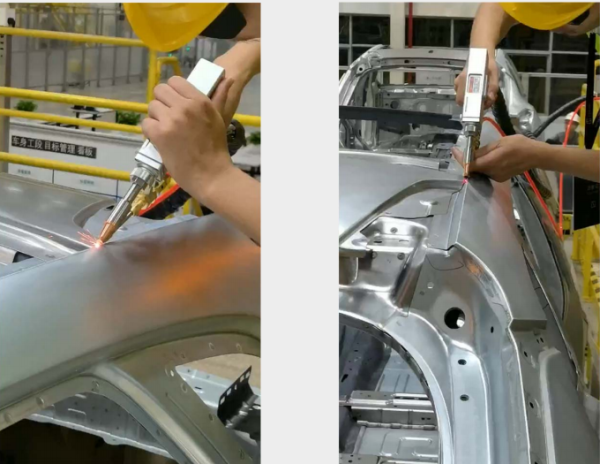

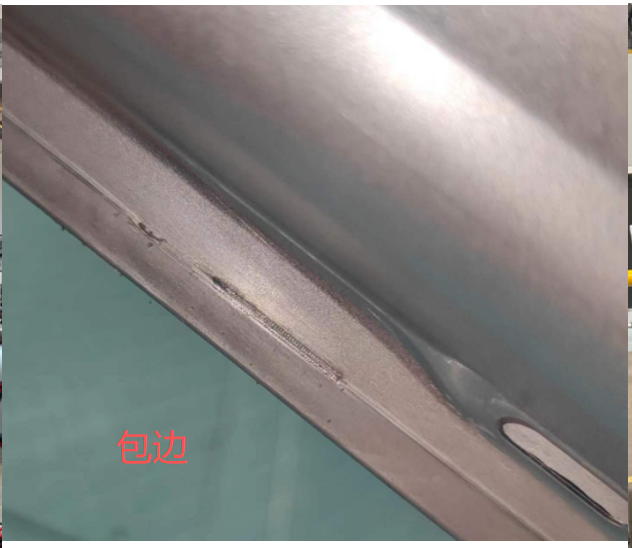

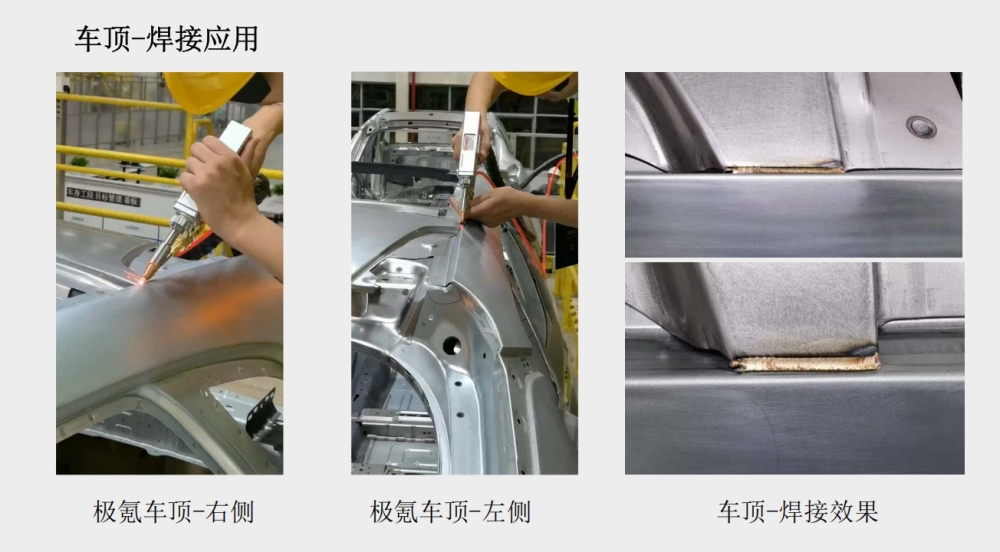

HauqHi Laser Welding and Cutting All-in-One Machine has received unanimous praise from customers in applications such as laser brazing/welding repair on car roofs, brazing of car door frames, battery case welding, and hood edge welding.
